RSZ – Replacement PTAC – RM Series

Product Info

ICE AIRs RSZ Series Replacement and Retrofit units are high energy efficiency PTACs. Designed from the ground up for ultrahigh efficiency, they incorporate advanced LEEDs features in a durable and user-friendly package.

Category: Replacement PTAC

Replaces: Cool Heat – RM; Embassy – Weather Twin; TPI – RaMATIC; ZoneAire – RM, SC; Islandaire – RM; Retroaire – RC/RH20

See all PTAC Products PTAC Accessories Thermostat Options

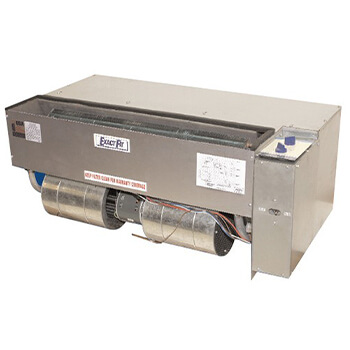

Ice Air - Product - PTAC - RSZ - Replacement - RM Series

Specifications

SERIES MODEL # 5RSZ09 5RSZ13 8RSZ09 8RSZ13 8RSZ18 7RSZ09 7RSZ13
Cooling Capacity1 9,400 12,800 9,300 12,750 16,300 9,200 12,800
EER 8.9 8.2 8.95 8.2 7.7 8.95 8.3
Heating Capacity (Hot Water)2 16,500 16,500 16,500 16,500 19,400 16,500 16,500
Heating Capacity (Steam)3 18,700 18,700 18,700 18,700 20,200 18,700 18,700
Electric Heating Max. (KW) 1.5 1.5 4.3 4.3 4.3 3.5 3.5
Voltage 115 115 208/230 208/230 208/230 277 277
Amperage 9.2 13.6 5.0 7.5 10.2 3.7 5.6
Watts 1,056 1,561 1,039 1,555 2,117 1,028 1,542
CFM Air High 370 370 370 430 430 370 370
CFM Air Low 260 260 260 330 330 260 260
Specification Notes:
1. BTUH @ 80°F. DB / 67°F. WB INDOORS; 95°F. DB OUTDOORS.
2. BTUH @ 200°F. E.W.T.; 65°F. E.A.T. & 2 G.P.M. FLOW RATE.
3. BTUH @ 2 PSIG STEAM & 65°F. E.A.T.

IMPORTANT: Accessories are optional. Deviations from standard accessories may affect performance; louver requires 70% free area per original OEM specification; room enclosures must provide sufficient return air, free flowing supply air and must be properly sealed to prevent air recirculation; any non-standard components or accessories must be reviewed and approved by Ice Air or approved distributor.
